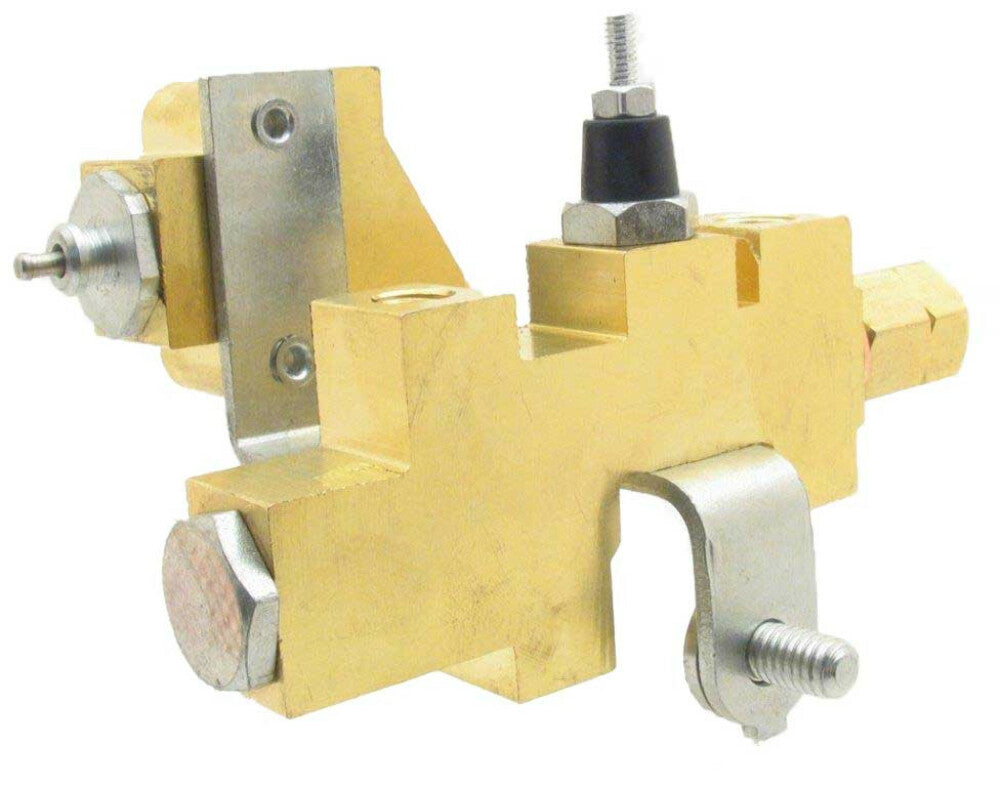

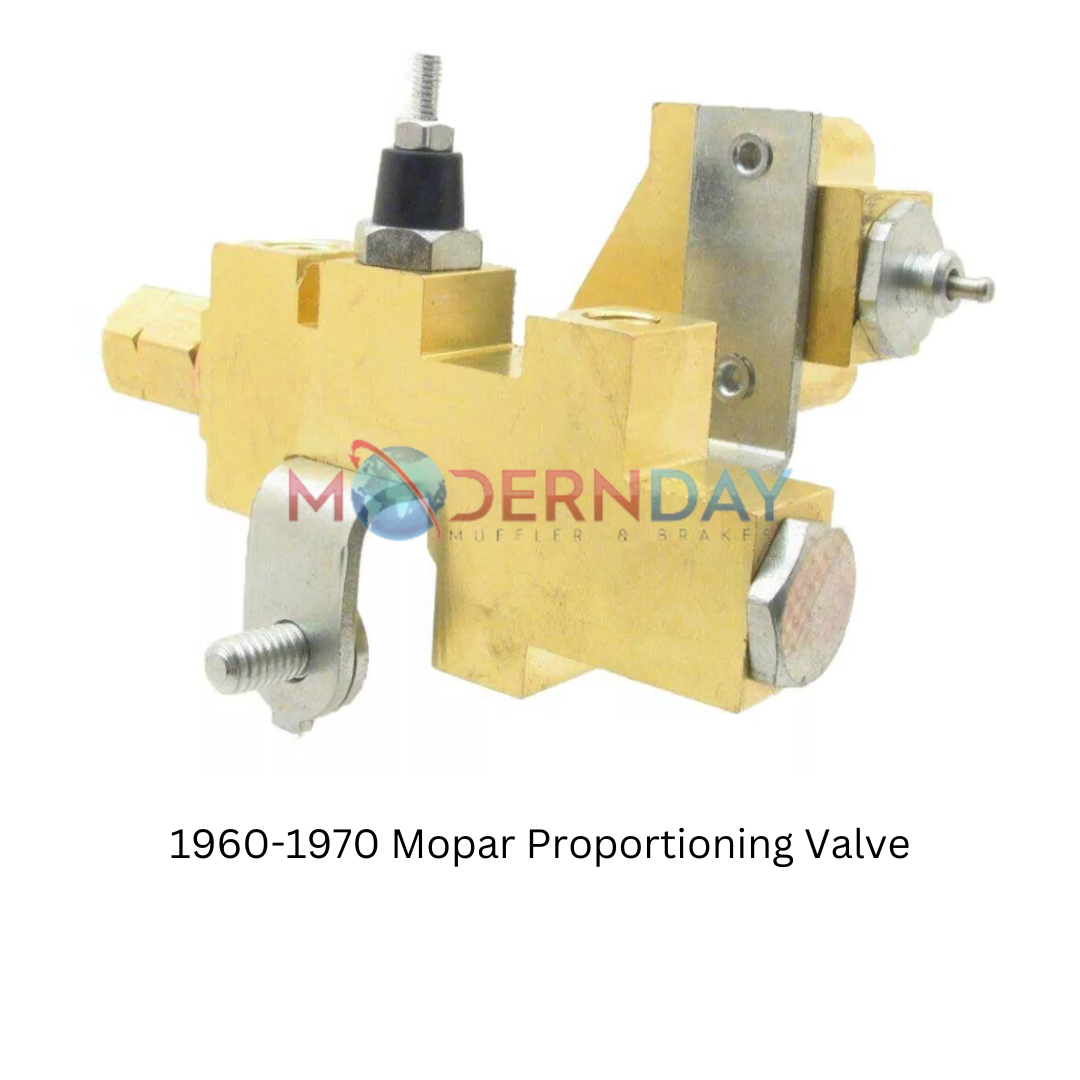

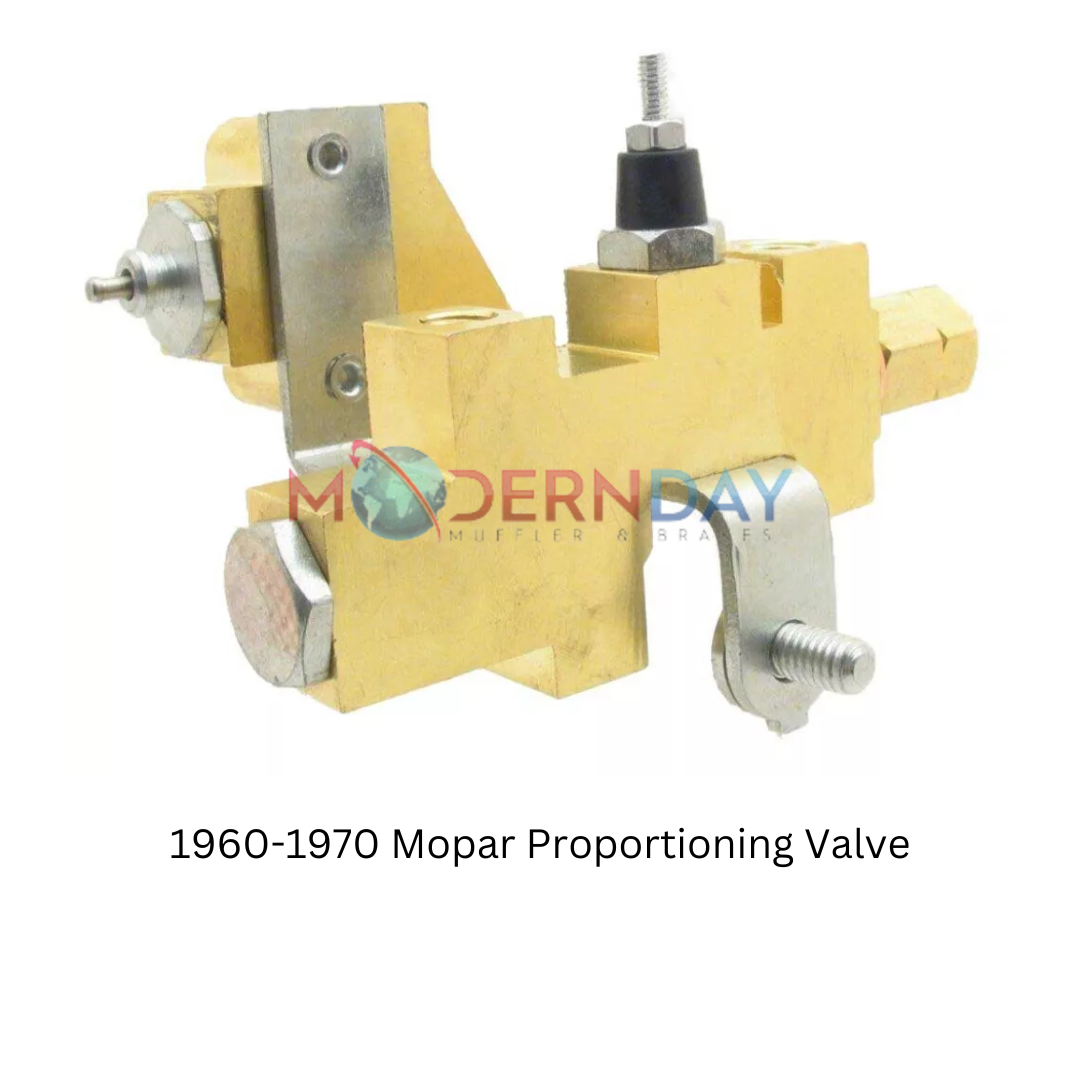

Fits 1960-1970 Mopar Proportioning Valve PV6070MOP
Fits 1960-1970 Mopar Proportioning Valve PV6070MOP
Couldn't load pickup availability
Estimated Shipping Widget will be displayed here!
Introducing the Mopar Proportioning Valve and Metering Valve Assembly (SKU: PV6070MOP)—a high-quality replacement component designed to optimize the braking performance of classic Mopar vehicles. This assembly ensures balanced brake pressure distribution between front disc and rear drum brakes, enhancing safety and reliability in your vintage car.
Key Features:
- Authentic Design: Replicates the original proportioning and metering valve assembly used in Mopar vehicles from the 1960s to the 1970s, maintaining period-correct aesthetics and functionality.
- High-Quality Construction: Manufactured from durable brass, offering excellent corrosion resistance and longevity.
- Disc/Drum Brake Compatibility: Specifically engineered for vehicles equipped with front disc and rear drum brakes, ensuring optimal brake bias and performance.
- Integrated Metering and Proportioning Functions: Combines metering and proportioning valves into a single unit, simplifying installation and maintenance.
- Precision Engineering: Ensures accurate pressure regulation to improve braking efficiency and performance.
Item Specifications:
- Part Number: PV6070MOP
- Material: Brass
- Finish: Natural Brass
-
Dimensions:
- Length: 6 inches
- Height: 3 inches
- Depth: 2 inches
-
Port Sizes:
- Front Brake Port: 3/8"-24 inverted flare
- Rear Brake Port: 7/16"-24 inverted flare
- Master Cylinder Ports: 1/2"-20 and 9/16"-18 inverted flare
- Brake Type: Disc/Drum
- Mounting Type: Horizontal mounting with included bracket
- Weight: Approximately 2 lbs
- Operational Temperature Range: -40°F to 250°F (-40°C to 121°C)
-
Pressure Ratings:
- Proportioning valve: 1500 PSI maximum
- Metering valve: 600 PSI maximum
- Packaging Includes: Proportioning and metering valve assembly with mounting bracket (brake lines not included).
- Warranty: 12 months or 12,000 miles, whichever comes first.
Compatibility:

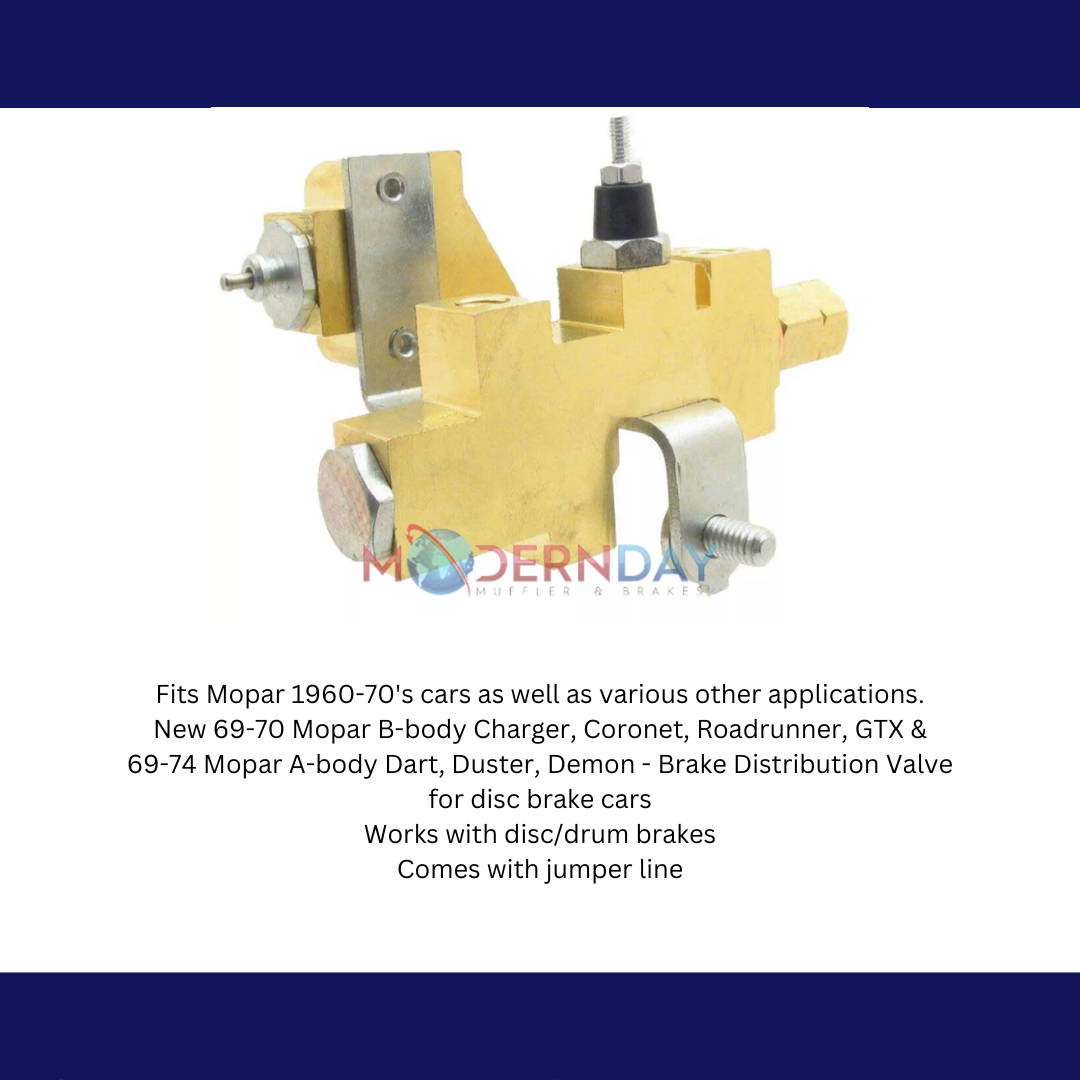

The PV6070MOP assembly is suitable for a range of Mopar vehicles from 1960 to 1974, including but not limited to:
-
A-Body:
- Dodge Dart (1962-1974)
- Plymouth Valiant (1962-1974)
- Plymouth Duster (1970-1974)
-
B-Body:
- Dodge Charger (1966-1974)
- Dodge Coronet (1965-1974)
- Plymouth Belvedere (1965-1970)
- Plymouth Road Runner (1968-1974)
-
C-Body:
- Chrysler Newport (1965-1974)
- Dodge Polara (1965-1973)
-
E-Body:
- Dodge Challenger (1970-1974)
- Plymouth Barracuda (1970-1974)
Installation Note:
Some Mopar vehicles may have an existing mounting stud on the frame. In such cases, you may need to remove the stud from the provided bracket to accommodate the existing mount. Brake lines are not included; ensure compatibility with your vehicle's brake system before installation.
Product Benefits:
- Enhanced Safety: Ensures proper brake pressure distribution, reducing the risk of rear wheel lock-up during braking.
- Restoration Accuracy: Maintains the original look and function of classic Mopar brake systems.
- Improved Performance: Increases braking efficiency for vintage vehicles with disc/drum configurations.
- Durability: Constructed from high-quality materials to withstand the demands of vintage vehicle braking systems.
Upgrade your classic Mopar's braking system with the PV6070MOP Proportioning Valve and Metering Valve Assembly, offering authentic design, reliable performance, and enhanced safety for your vintage vehicle.
