GM Bottom Mount Prop Valve Kit. Disc/Disc - Aluminum PV4AK-2BM

GM Bottom Mount Prop Valve Kit. Disc/Disc - Aluminum PV4AK-2BM

PV4AK-2BM-MBM-CP

$89.99 USD
$89.99 USD
Sale Sold out

Estimated Shipping Widget will be displayed here!

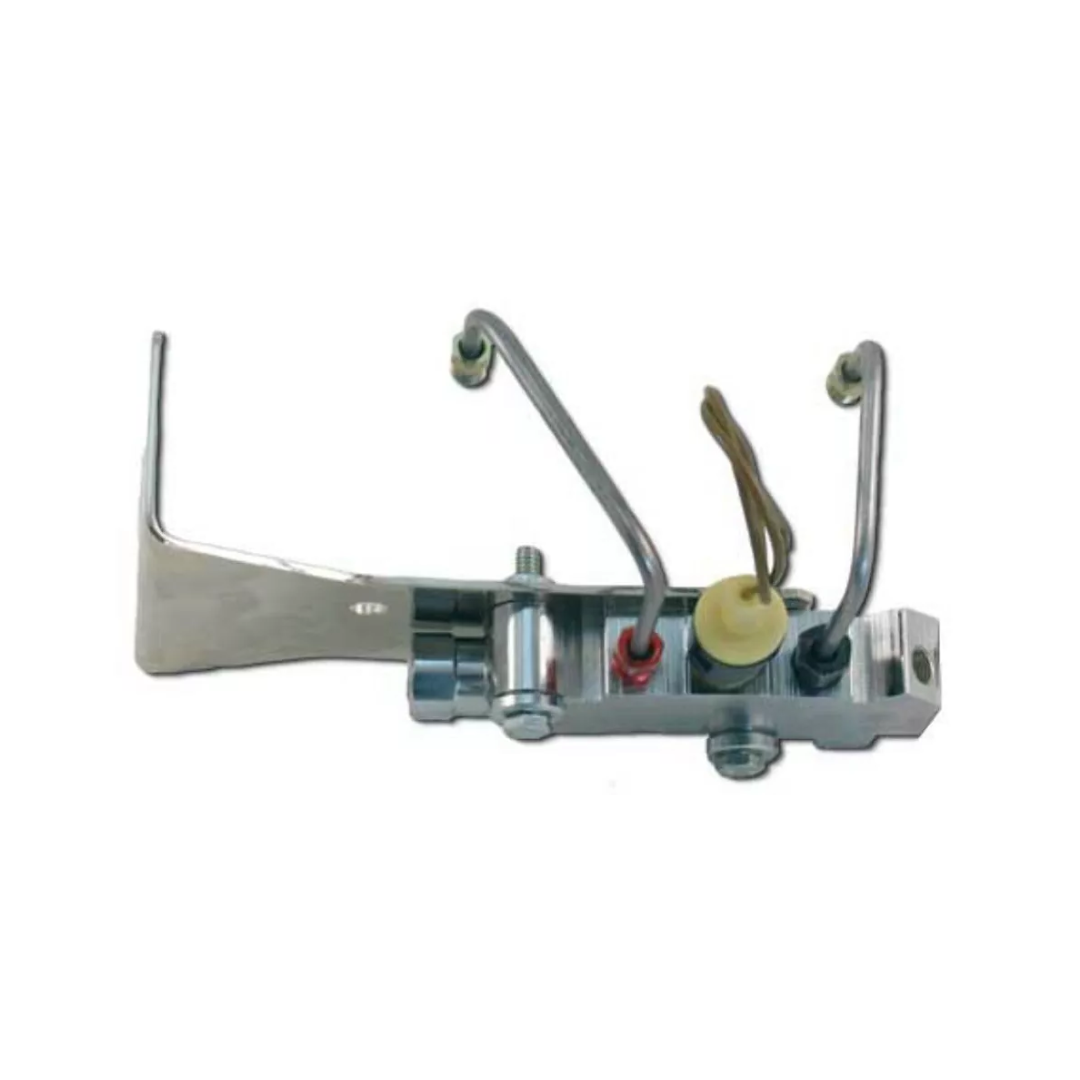

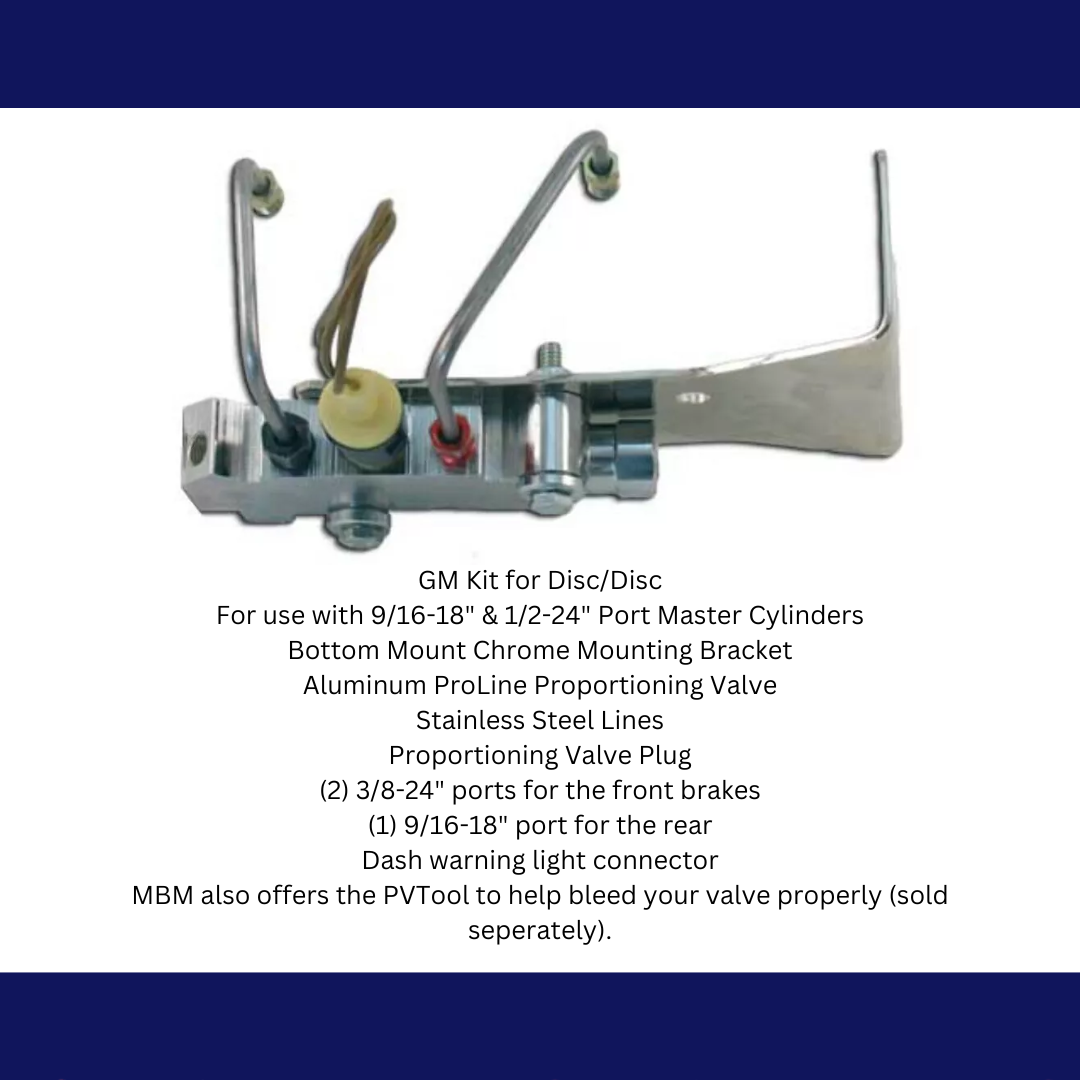

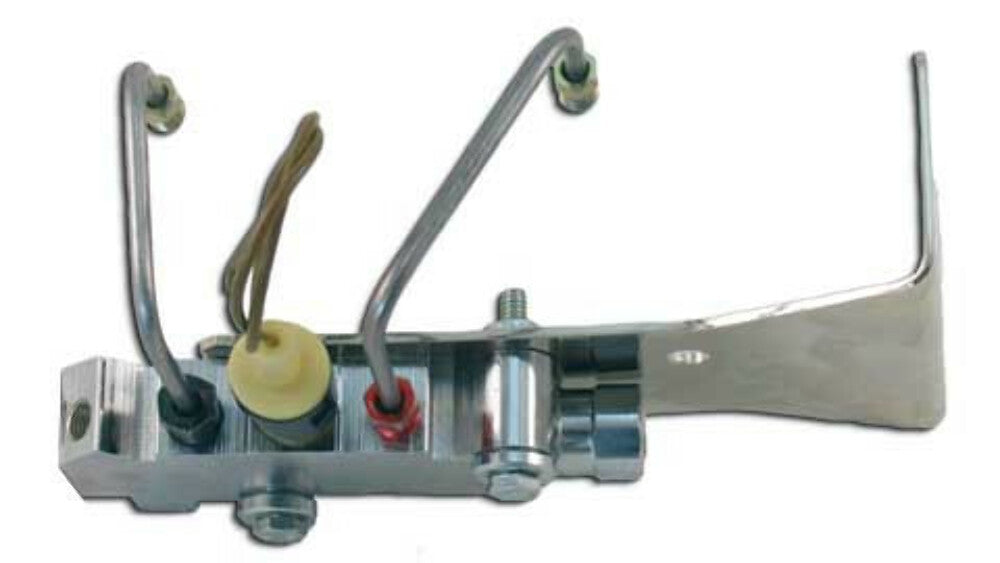

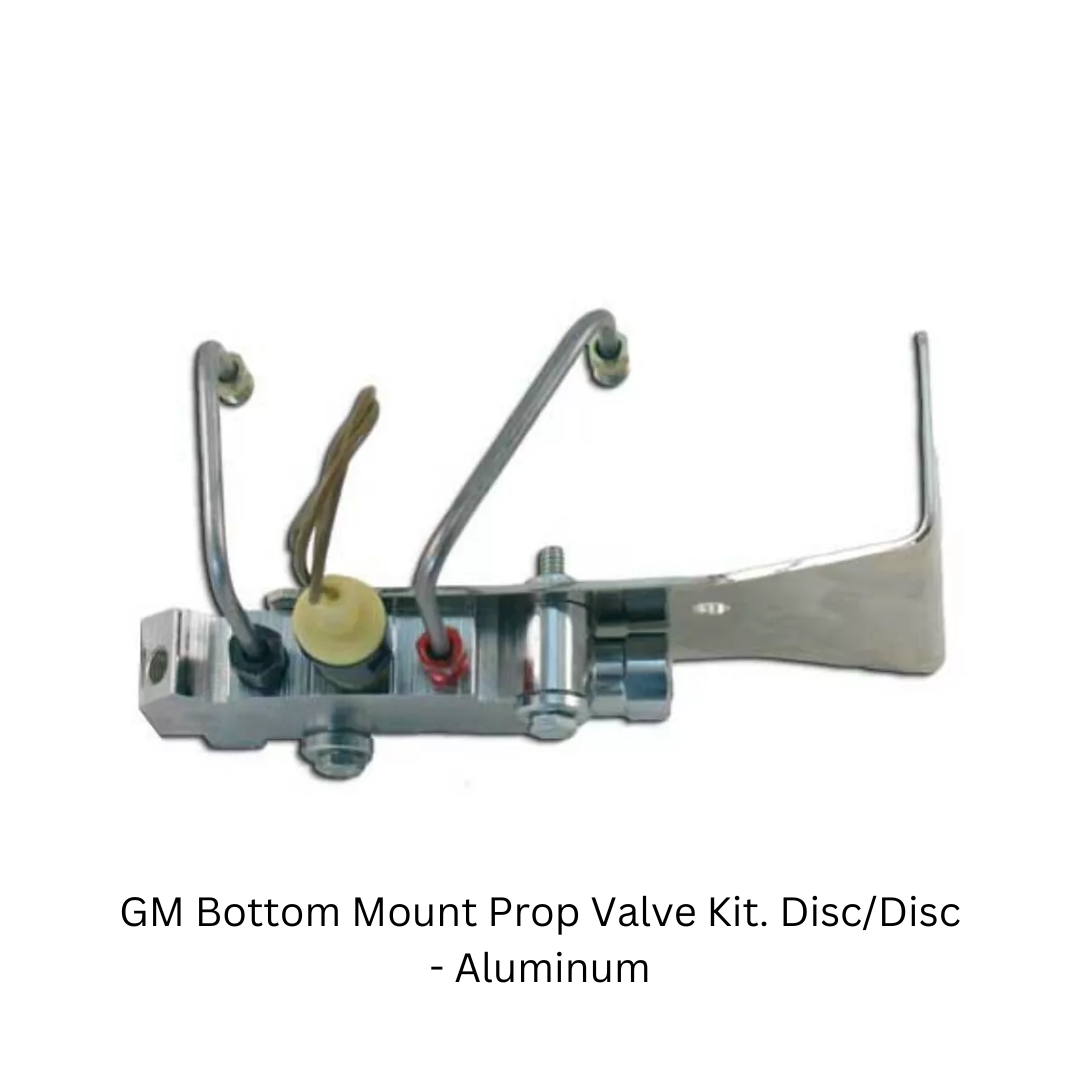

Introducing the Proportioning Valve Kit (SKU: PV4AK-2BM), a premium solution designed to enhance braking performance in vehicles equipped with four-wheel disc brakes. This bottom-mount aluminum kit ensures precise brake fluid distribution, improving safety and efficiency during braking.

Key Features:

  • Enhanced Brake Balance: Distributes brake fluid accurately between front and rear disc brakes, ensuring balanced and effective braking performance.

  • Durable Construction: Manufactured from high-quality aluminum, offering excellent corrosion resistance and longevity.

  • Comprehensive Kit: Includes pre-bent stainless steel lines, a polished stainless steel bottom-mount bracket, and a brake light warning switch for a complete and straightforward installation.

  • Safety Integration: Features a brake light warning switch to alert the driver of any brake system issues.

Item Specifications:

  • Part Number: PV4AK-2BM

  • Material: Aluminum

  • Finish: Polished Aluminum

  • Brake Application: Four-Wheel Disc (Disc/Disc)

  • Inlet Ports:

    • 9/16"-18
    • 1/2"-20

  • Outlet Ports:

    • (2) 3/8"-24 (Front)
    • (1) 9/16"-18 (Rear)

  • Mounting Type: Bottom Mount (Under Master Cylinder)

  • Placement on Vehicle: Under Master Cylinder

  • Included Components:

    • Proportioning Valve
    • Pre-bent Stainless Steel Lines
    • Polished Stainless Steel Bottom-Mount Bracket
    • Brake Light Warning Switch

  • Dimensions:

    • Length: Approximately 6.89 inches
    • Width: Approximately 5.31 inches
    • Height: Approximately 2.75 inches

  • Weight: Approximately 2.64 lbs

  • Compatibility: Suitable for various GM vehicles and custom applications equipped with four-wheel disc brakes.

Installation Note:

Install the proportioning valve using the provided bottom-mount bracket and pre-bent lines. Ensure all connections are secure and free from leaks. Connect the brake light warning switch to the appropriate indicator to monitor brake system performance.

Upgrade your vehicle's braking system with the PV4AK-2BM Proportioning Valve Kit for balanced brake performance and enhanced safety on the road.
